產(chǎn)品描述

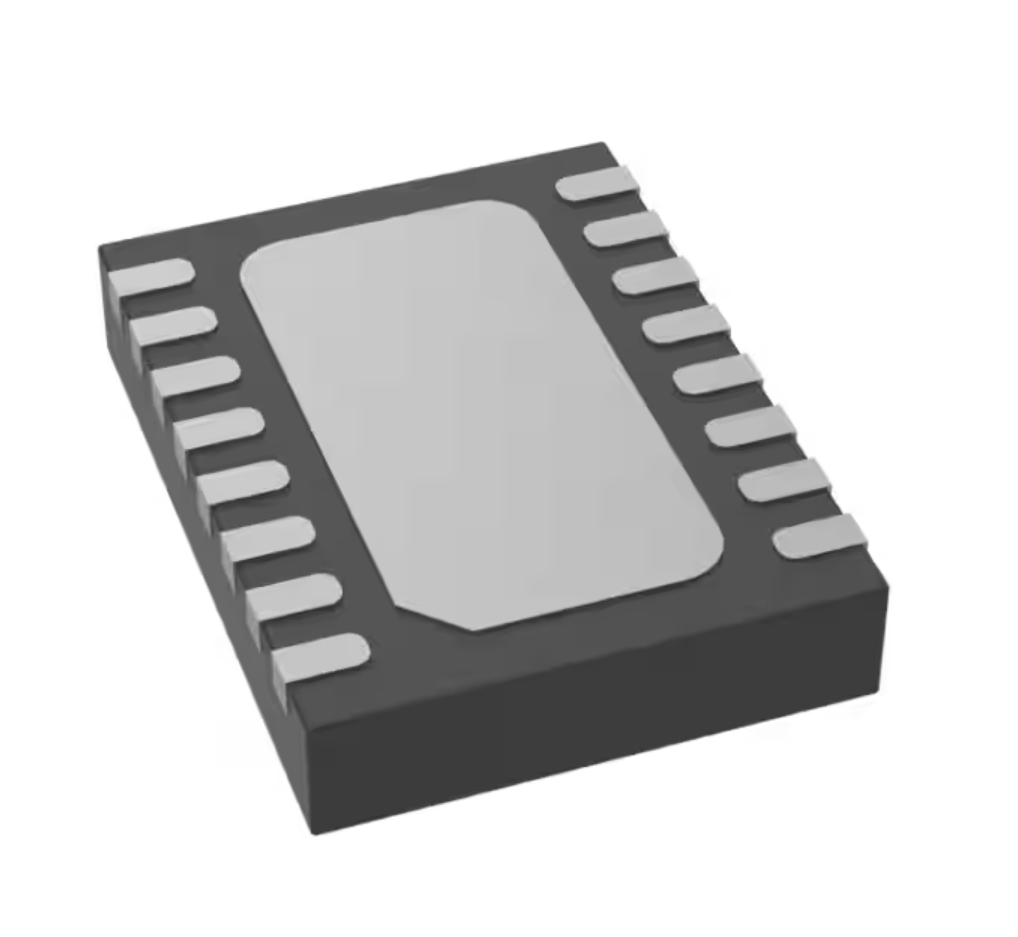

Smart High-Side Power Switch Single Channel, 30mΩ, DFN5×6-16L , AEC-Q100 qualified
主要特點
Basic Features
◆ Single channel device
◆ Standby current <1.0μA
◆ 3.3 V and 5 V compatible logic inputs
◆ RoHS compliant and lead free
◆ AEC-Q100 qualified
Diagnostic Functions
◆ Multiplexed analog feedback of load current with high precision proportional current mirror
◆ Off-state open load detection
◆ Output short to Vs detection
Protection Functions
◆ Undervoltage shutdown
◆ Overvoltage clamp
◆ Load current limitation
◆ Output short-circuit protection
◆ Self limiting of fast thermal transients
◆ Protection against loss of ground and loss of Vs
◆ Thermal shutdown indication
◆ Electrostatic discharge protection
規(guī)格書
| 文檔名稱 | 文檔描述 | 下載 |
|---|---|---|

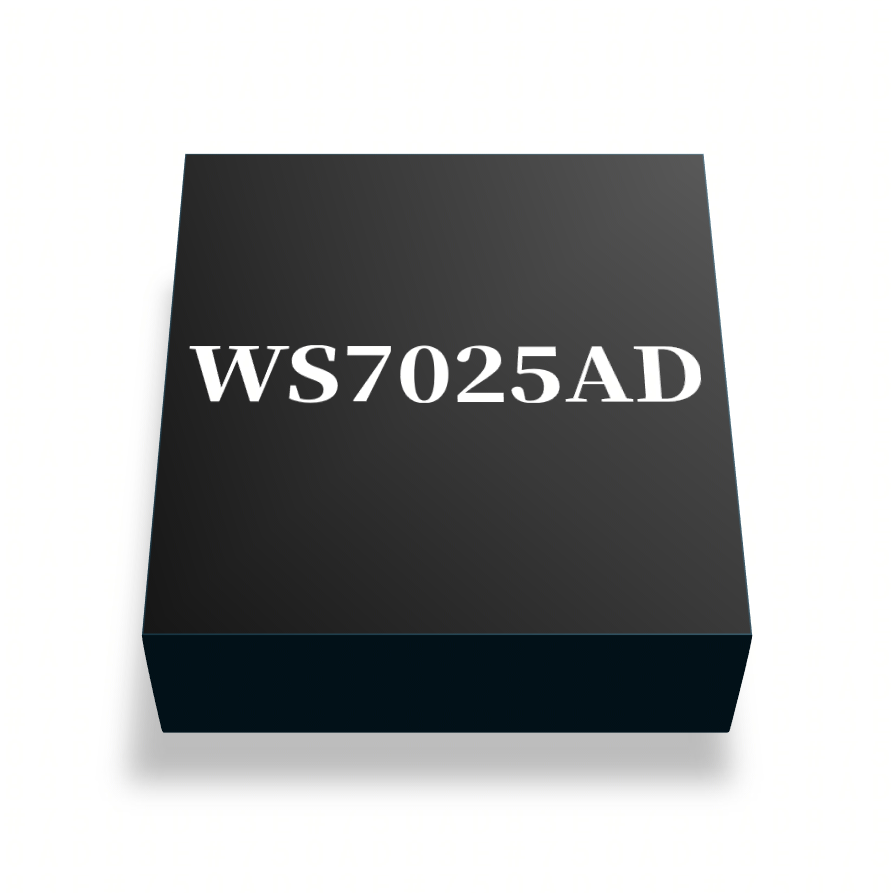

| WS7025AD | 4527.6KB |
