產(chǎn)品描述

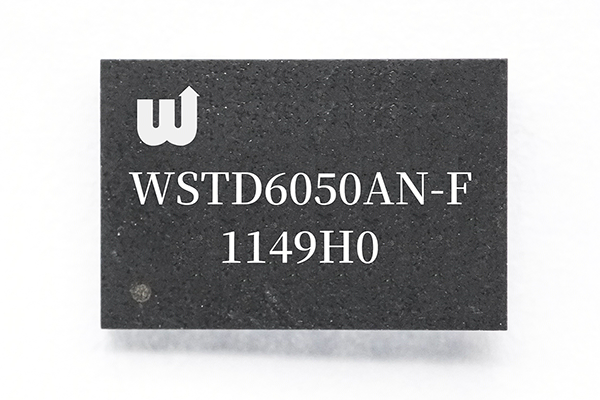

Smart High-Side Power Switch Single Channel, 38mΩ,DFN9x6-14L，AEC-Q100qualified

主要特點

Basic Features

• Dual channel device

• Very low stand-by current

• 3.3 V and 5 V compatible logic inputs

• Optimized electromagnetic compatibility

• Very low electromagnetic susceptibility

• Can be used for PWM frequencies up to 2 kHz

Diagnostic Functions

• Proportional load current sense

• High current sense precision for wide range currents

• Off-state open load detection

• OUT short to VS detection

• Overload and short to ground latch-off

• Thermal shutdown latch-off

• Very low current sense leakage

Protection Functions

• Undervoltage shutdown

• Overvoltage clamp

• Load current limitation

• Self limiting of fast theral transients

• Protection against loss of ground and loss of VS

• Thermal shutdown

規(guī)格書
