產品描述

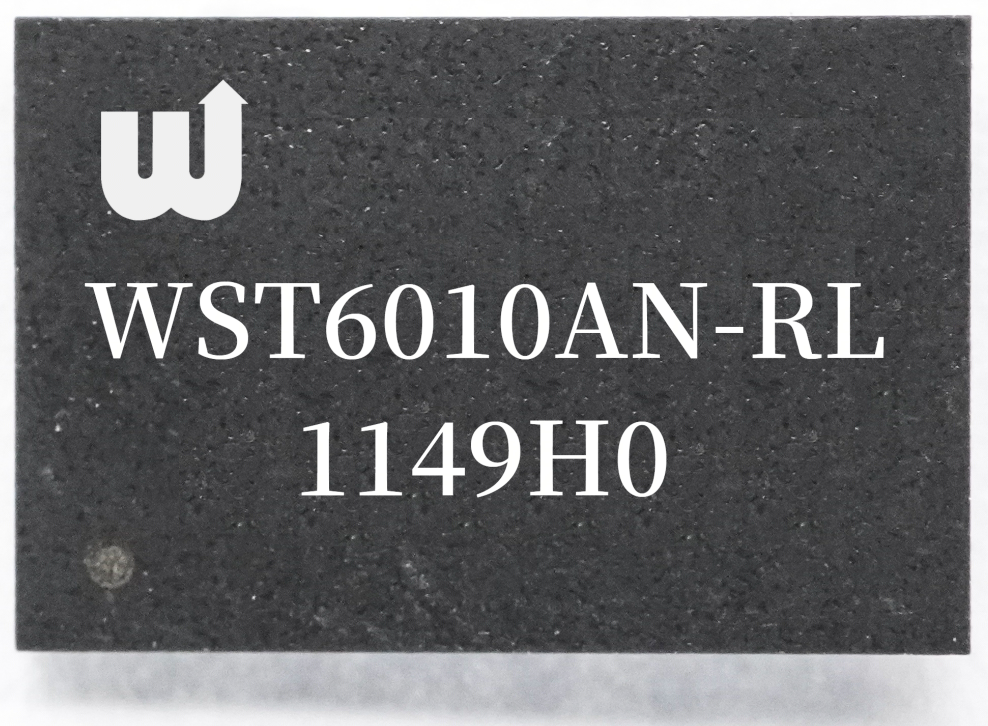

Smart High-Side Power Switch Single Channel, 9mΩ, DFN9×6-14L, AEC-Q100 qualified

主要特點

Basic Features

• Single channel device

• Very low stand-by current

• 3.3 V and 5 V compatible logic inputs

• Optimized electromagnetic compatibility

• Very low electromagnetic susceptibilit

• Self-recovery mode in fault condition

• User adjustable current limitation

Diagnostic Functions

• Proportional load current sense

•  High current sense precision for wide range currents

• Off-state open load detection

• OUT short to VS detection

• Very low current sense leakage

Protection Functions

• Undervoltage shutdown

• Overvoltage clamp

• Load current limitation

• Self limiting of fast thermal transients

• Protection against loss of ground and loss of VS

• Thermal shutdown

• Electrostatic discharge protection

規(guī)格書
