產(chǎn)品描述

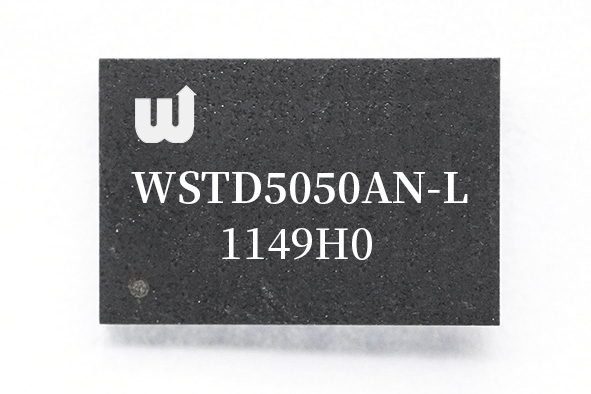

Smart High-Side Power Switch Dual channel, 38mΩ, DFN9x6-14L , AEC-Q100 qualified
主要特點
Features
PRO-SIL ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13
Dual channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Optimized electromagnetic compatibility
Very low electromagnetic susceptibility
User adjustable current limitation
Diagnostic Functions
Proportional load current sense
High current sense precision for wide range currents
Off-state open load detection
OUT short to VS detection
Overload and short to ground latch-off
Thermal shutdown latch-off
Very low current sense leakage
Protection Functions
Undervoltage shutdown
Overvoltage clamp
Load currentlmitation
Self limiting of fast thermal transients
Protection against loss of ground and loss of VS
Thermal shutdown
